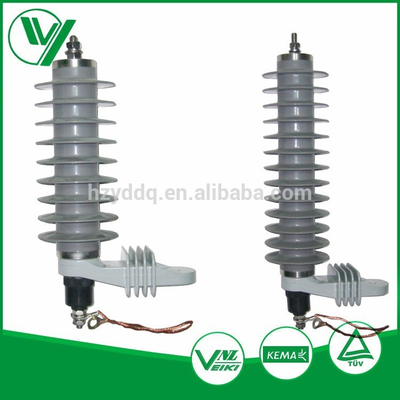

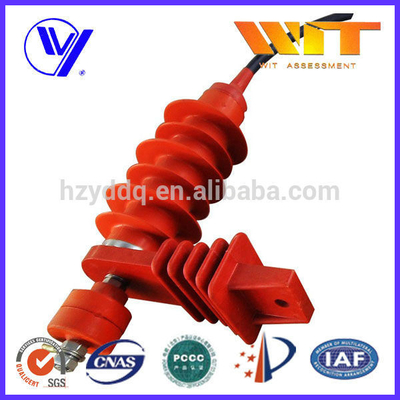

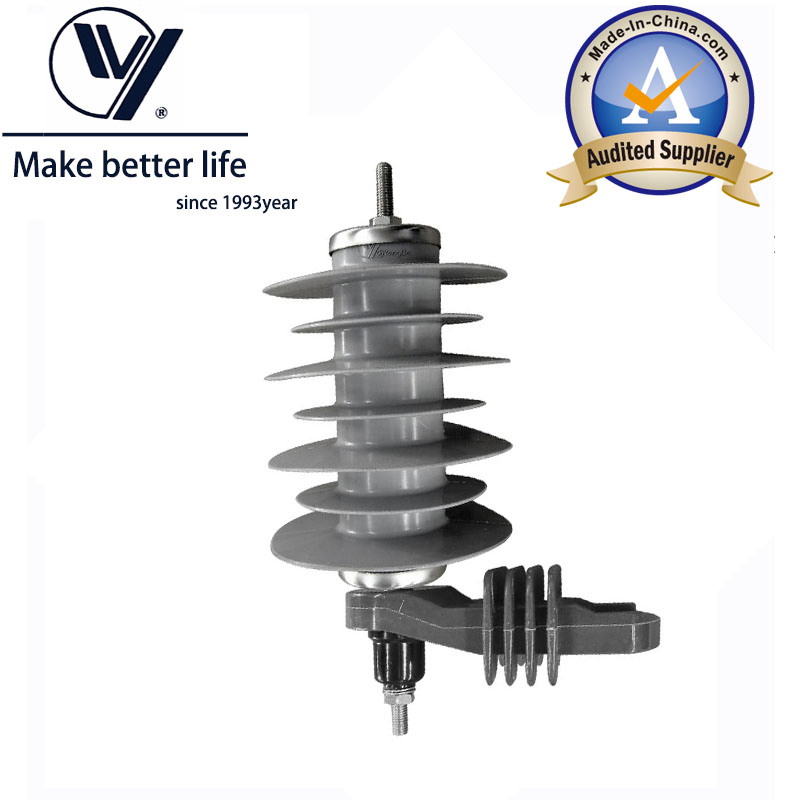

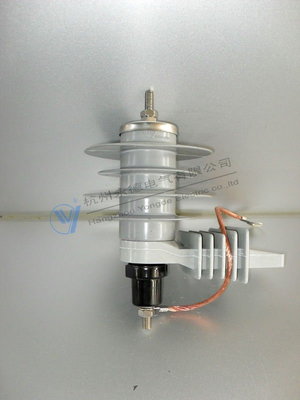

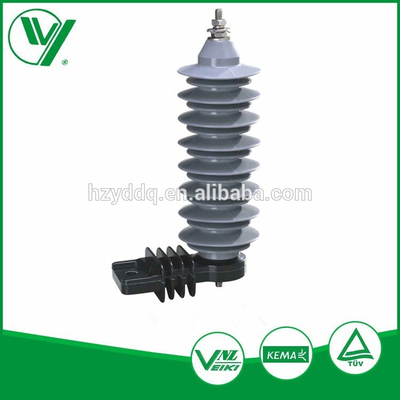

18kV 10kA Zinc Oxide Surge Arrester for Substation

MOQ:	1
価格:	1

Detail Information

Product Description

Detail Information

証明:

ISO9001, Kema

モデル番号:

YH10W5-18

インストールタイプ:

タンデムアレスター

電圧定格:

18kv

小屋の直径:

138/108

身長:

194mm

総重量:

2.1kg

沿面距離:

596mm

長時間電流:

400A

電光衝動:

95/150kv

材料:

Zno

動作温度:

-40〜 +40度

高度制限:

<1000m

周波数範囲:

48Hz〜62Hz

最大風速:

35m/s

地震の強度:

7度

ハイライト:

18kV zinc oxide surge arrester

substation lightning arrester 10kA

zinc oxide surge protector substation

Product Description

Medium Voltage 18kv 10ka Composite Zinc Oxide Surge Arrester

Product Specifications

Attribute	Value
Model NO.	YH10W5-18
Installation	Tandem Arrester
Application	Substation
Size	Medium
Operation Voltage	High Voltage
Shape	Spiral
Material	ZnO
Brand	Yongde
Creepage Distance	596mm
Transport Package	Carton
Specification	IEC60099-4
Trademark	YONG′DE
Origin	China
HS Code	85354000
Production Capacity	50000PCE Per Year

Technical Specifications

Voltage: 18KV
Shed diameter: 138/108
Height: 194mm
Gross weight: 2.1kg
Creepage distance: 596mm
Long duration current impulse: 400A
Lightning impulse withstand: 95/150KV

Working Conditions

Environment temperature: -40°C to +40°C
Altitude: <1000m
Rated frequency: 48Hz to 62Hz
Power frequency voltage should not exceed continuous running voltage
Maximum wind speed: <35m/s
Earthquake intensity: <7 degree
Special requirements for contamination areas must be noted in advance
