YH10W-36 Surge Arrester for Substation Lightning Protection

MOQ:	1
価格:	40

Detail Information

Product Description

Detail Information

定格電圧:

36のKV

MOCV:

29 kv

公称電流:

10のkV

急なインパルス残存:

5kaで106 kV

稲妻の衝動残留:

5kaで98 kV

スイッチングインパルス残差:

1kaで75 kV

DC参照電圧:

1MAで51 kV

ライン放電レベル:

長時間電流:

2msで400 A

高電流インパルス:

4/10µsで100 ka

稲妻に耐えます:

200kV

電力周波数に耐える:

70 kV（ドライ/ウェット）

0.1s tov:

43.2 kv

1s tov:

41.4 kv

10S TOV:

39.6 kv

ハイライト:

substation surge arrester with warranty

lightning protection arrester for substation

YH10W-36 surge arrester

Product Description

Competitive High Quality Surge Arrester (YH10W-36)

Product Specifications

Attribute	Value
Model NO.	YH10W-36
Specification	SGS
Trademark	YONG′DE
Origin	China
HS Code	85354000
Production Capacity	5000 Pieces Per Month

Technical Specifications

Type	YH10W5-36/98
Rated voltage (kV)	36
MOCV (kV)	29
Nominal Current (kV)	10
Residual voltage of steep impulse at 5kA (kV)	106
8/20µS Residual voltage of lightning impulse current at 5kA (kV)	98
Residual voltage of switching impulse current at 1kA (kV)	75
1mA D.C reference voltage (kV)	51
Line discharge level	1
2mS long duration impulse current (A)	400
Material employed in series non-linear resistor	Zinc Oxide

Surge Arrester Working Conditions

Low Voltage Lightning Arrester
Working conditions:
- Environment temperature: -40°C to +40°C
- Altitude: <1000m
- 48Hz < Rated frequency < 62Hz
- Power frequency voltage should not exceed continuous running voltage
- Maximum wind speed should be less than 35m/s
- Earthquake intensity should be less than 7 degree
- If used in contamination area, should be noted in advance

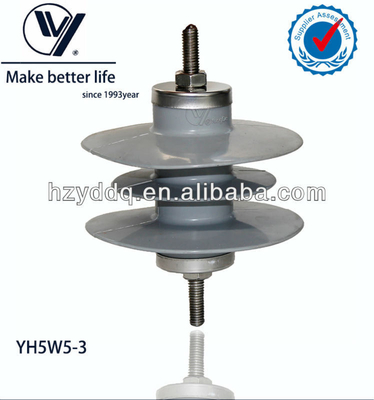

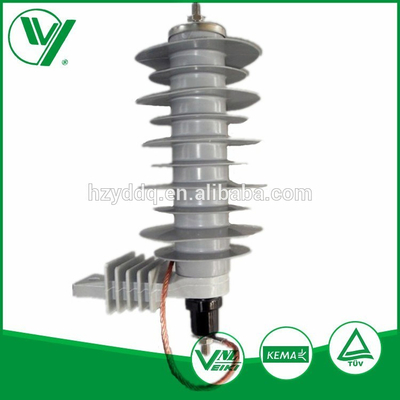

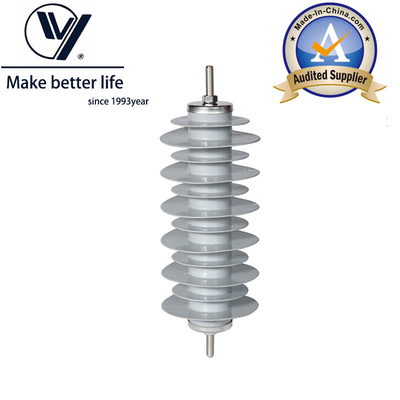

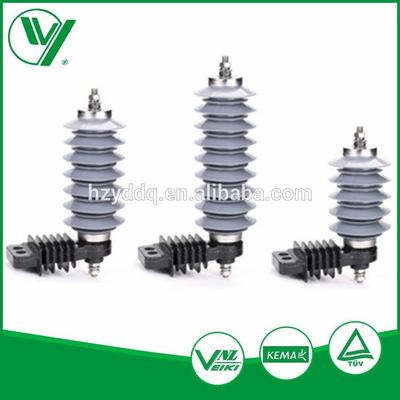

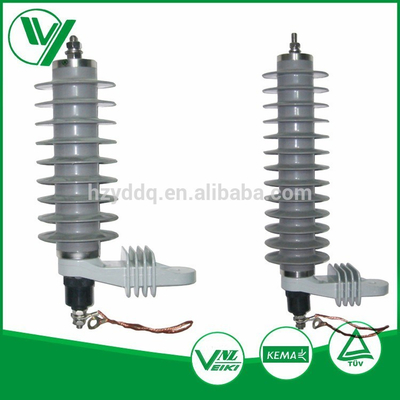

Product Images
